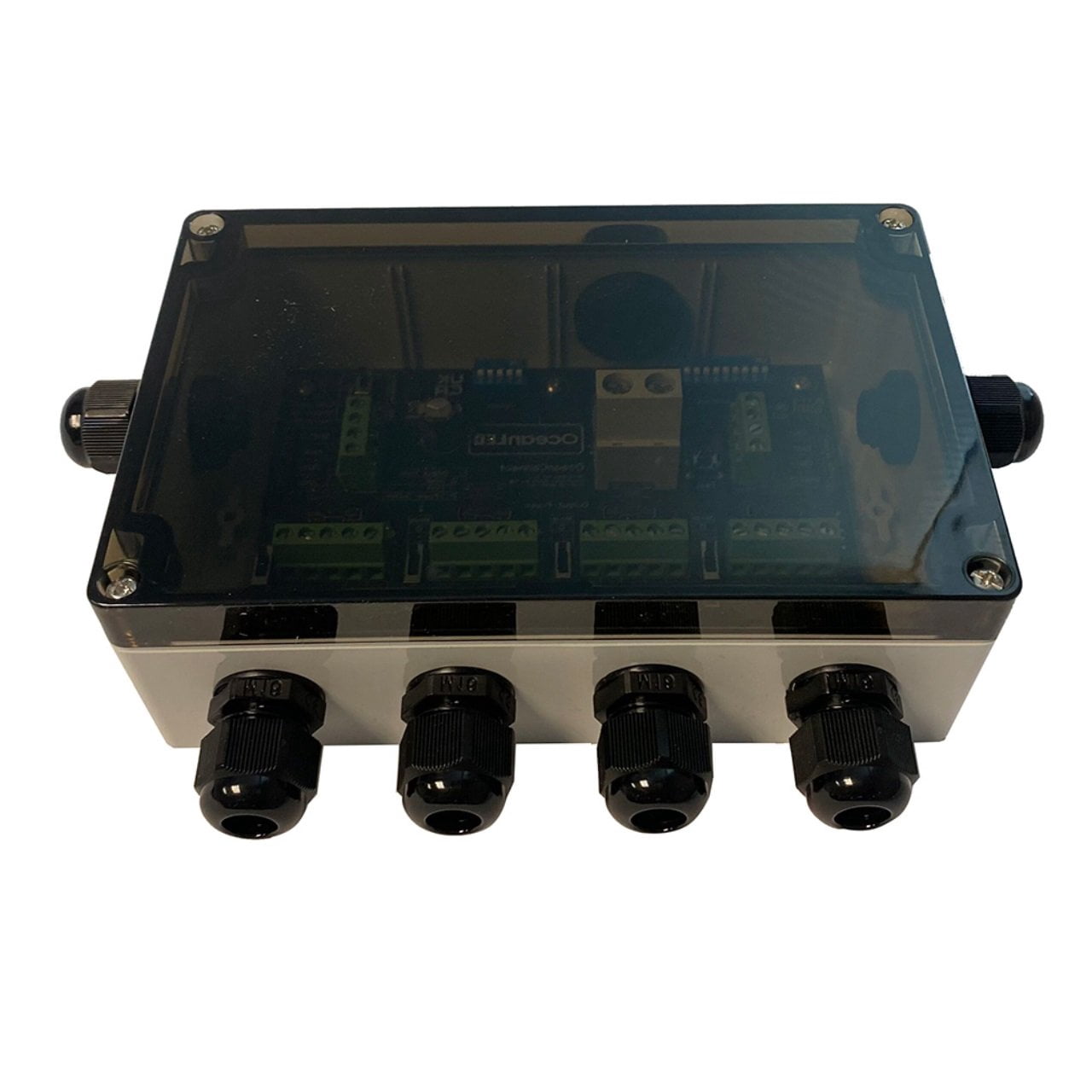

OceanLED OceanConnect Junction Box [013204]

<p></p><p><strong>OceanConnect Junction Box</strong></p><p>The OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box.</p><p>The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights.&nbsp;</p><p><strong>Contents:</strong></p><ul><li>1x OceanConnect unit, including 4x 7.5A blade fuses</li><li>4x mounting screws</li><li>1x twin entry cable grommet</li><li>4x blanking plugs</li></ul><p><strong>Specifications:</strong></p><ul><li>Voltage: 12/24V DC (max 32V DC)</li><li>Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out</li><li>Power Input Terminals Wire Gauge: 8-20 AWG</li><li>DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG</li><li>Light Outputs: DMX &amp; Power- 4 x individual fused 6 Amp each max</li><li>DMX Input: 1x DMX Input (to connect the DMX controller)</li><li>DMX Output: 1x DMX Output (to link junction boxes in the chain)</li><li>DMX Terminator: Onboard DMX terminator with an on/off switch</li></ul><p><strong>Physical Specifications</strong></p><ul><li>Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")</li><li>Enclosure: IP66-robust polycarbonate</li><li>Weight: 270g</li></ul> <p></p><p><b>Specifications:</b></p><ul><li>Box Dimensions: 3"H x 9"W x 11"L WT: 1.6 lbs</li><li>UPC: 5051803009092</li></ul>

• OceanConnect Junction BoxThe OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box.The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights. Contents:
• 1x OceanConnect unit, including 4x 7.5A blade fuses
• 4x mounting screws
• 1x twin entry cable grommet
• 4x blanking plugsSpecifications:
• Voltage: 12/24V DC (max 32V DC)
• Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
• Power Input Terminals Wire Gauge: 8-20 AWG
• DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG
• Light Outputs: DMX & Power- 4 x individual fused 6 Amp each max
• DMX Input: 1x DMX Input (to connect the DMX controller)
• DMX Output: 1x DMX Output (to link junction boxes in the chain)
• DMX Terminator: Onboard DMX terminator with an on/off switchPhysical Specifications
• Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
• Enclosure: IP66-robust polycarbonate
• Weight: 270g Specifications:
• Box Dimensions: 3"H x 9"W x 11"L WT: 1.6 lbs
• UPC: 5051803009092
